AnHui Safe Electronics Co., LTD.
5 1

CBB65 35uf 450V AC Motor Capacitor for Air Conditioner Compressor

Contact Now* Send an Inquiry to this supplier.
or
Start Order * Name your price

Browse by Category

Contact us

AnHui Safe Electronics Co., LTD.
[China]

Address
NO.1771 QiFeng Road, Shizishan EConomic Development Zone. Tongling Anhui
Phone
86-1895622-9826
Contact name
Mia

Quick Information

  • Brand Name: Saifu
  • Place of Origin: China
  • Model Number : Cbb65 35uf 450V Flat bottom
  • Application : Air Conditioner
  • Capacitance : 2to100uf
  • Operating Temperature : Minus40to85Degrees
  • Package Type : Surface Mount
  • Rated Voltage : 220VAC370VAC440VAC450VAC
  • Type : Polyester Film Capacitor
  • :

Description

Company Profile

Anhui Saifu Electronics Co., Ltd was established in February 2007.

Address: 1771 Qifeng road, Shizhishan district, Tongling city, Anhui province,China. Our qualiaty management system are certified by ISO9001 and our products have CQC, TUV, UL, VDE and other performance certifications, compliance with EU RoHS directive, with SGS report. The company has a powerful R&D team,a total of nearly 80 patents,including twelve invention patents. It has establisted a close cooperation relationship with Anhui Province Opyoelectronic Applied Engineering Technology Research Center. Our Company was awarded "National High-tech Enterprise" for three consecutive period in 2012, 2015 and 2018.The company now has 3 high-vacuum coating machines, 9 high-speed Siltting machines, 6 winding machines and four-gun glod spray system and other automatic equipments. Main products: metallized film for capacitor use, CBB65(CBB61/60) AC motor capacitor and the SFPEC series of power electronics capacitors. The Dry DC filter capacitor of SFPEC series was rated as "High-tech Products in Anhui Province".  As a high-tech enterprise, we focus on the new neergy field and commit to be a world-class supplier.


Product Features

CBB65 AC Motor Capacitor (aluminum case, explosion-proofed)

1.Suitable for starting and running of single-phase motor supplied by 50Hz/60Hz AC power supply.

2.High stability and reliability.

3.Explosion-proof design, more safer.

4.Round capacitor, oval capacitor available.

5.Single capacitor, compound capacitor available.



Specifications

Reference Standards: GB/T 3667.1(IEC60252-1)

Rated Voltage: 220VAC 370VAC 440VAC 450VAC

Climatic category: 40/70/21,40/85/21

Class of operation: Class B(10000h)  Class C(3000h)

Class of safety production: S2

Capacitance range: 2~100UF

Capacitance tolerance: ±5% ±10% ±15%

Dissipation factor: 20*10-4(100Hz,20ºC)

Test voltage terminal to terminal UTT: 2 Un for 2 seconds

Insulation Resistance: ≥3000s(100Hz,20ºC,1min)

Capacitor Case: Aluminum Case

Altitude: ≤2000m

Maximum allowed voltage: No more than 1.1 times rated voltage

Maximum allowed current: No more than 1.3 times rated current

Package Type: Export Standard Carton for CBB65 Capacitor

MOQ: 1 PCS

Size: Available

Dimensions(mm)


Note:Other specifications and size, terminal outside table are negotiable.



Why choose us

1.Stable Quality: well-equipped with advanced manufacture equipment;

implement 1S09001 standardization management.

2.Leading Technology: a number of invention patents.

3.Reasonable Price: implementation of adding merely 10% profit on industrial products.

4. Cordial Services: 24 hours online,prompt reply and timely delivery.

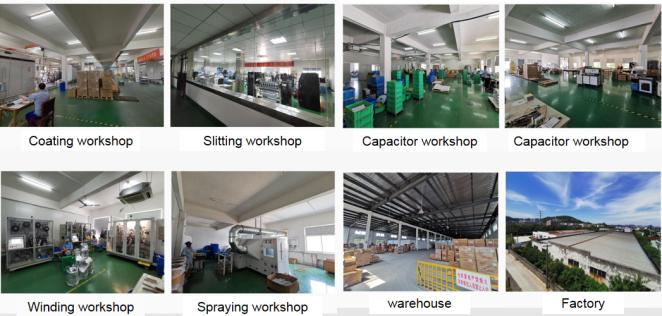

Product Process And Workshop




Certification and invention patent



Strong R&D Strength



Enterprise honor



Contact Information

Company Anhui Safe Electronics CO.,LTD.
Address NO.1771 QiFeng Road,Shizishan National High Technology Zone,Tongling,Anhui, China
Tel 0086 - 562 - 2821018
Fax 0086 - 562 - 2821558
Mobile/Whatsapp 0086 - 13305620368 (Helen)
Homepage www.film-capacitor.com


Certificates

  • TUV : 50303030

Price

  • Delivery Port : Shanghai

Packaging & Delivery

  • Packing :50PiecesPerBox
  • Packaging Size : 604 x 308 x 150  Millimeters
  • Package Weight : 13  Kilograms
  • Delivery Lead Time : 7~15 days after payment
  • Supply Ability : 500000 PCS Per Month

Product Image

  • CBB65 35uf  450V AC Motor Capacitor for  Air Conditioner Compressor image
